AFM-10 5 Heads Automatic Cartridge Filling Machine is an electronic intelligent oiling equipment with a heated function. Which supports filling more conveniently, more accurately, and faster. And is great suitable for heavy oil. It is very suitable for ambitious farm growers and pursuing wholesalers. Providing high-speed and efficient filling solutions.
AFM-10 automatic Cartridge Filling Machine Running Demonstration
AFM-10 5 heads cartridge filling machine in action
Output: 2000-3000 pcs per hour

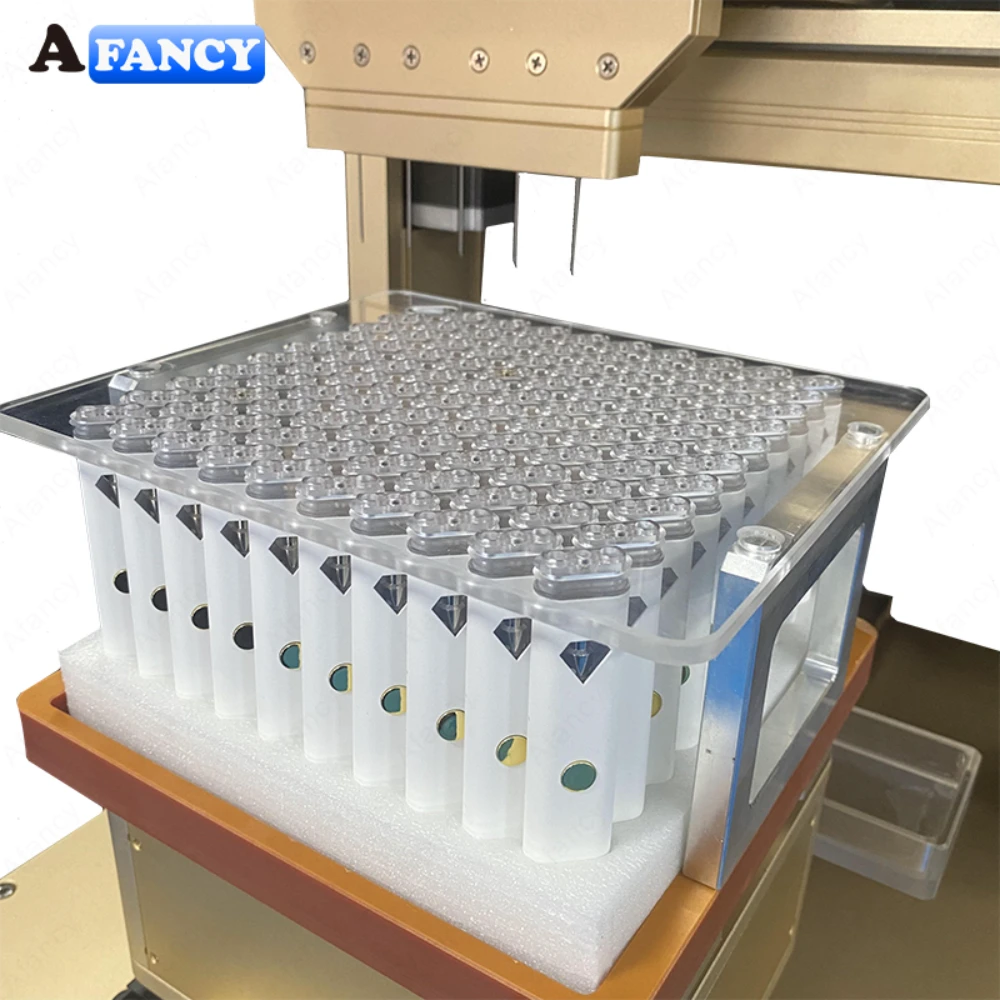

Flexible and suitable for filling different kinds of cartridges, syringes and other various containers below 5ml.
Detailed parameters of AFM-10 5 Heads Auto Filling Machine
| Dispensable Volume Range | 0.2-5 ml |
| Oil tank capacity | 1000ml or 2000ml or customized |
| Dispense Accuracy | ±1% |
| Output | 2000-3000pcs /hour |
| Power supply | AC 110 – 220V |
| Temperature range | 0-120 Celsius |
| Material | Food grade silicon tube; lead free injector; FDA testing passed |
| Drive mode | Stepper motor + rail drive |
| Panel control | Touch screen, operation button, Smart Filling System |
| Machine Dimensions | W*D*H(mm) 740x400x760mm,70kg |
| Export package size (mm) | L*W*H=840*500*860mm |
| NW/GW | 70kg/100kg |
| Warranty | 24 months |
| Shipping | DHL/UPS/FedEx, all door to door service. |
| Payment | Alibaba pay, Paypal, T/T, Western Union, etc. |

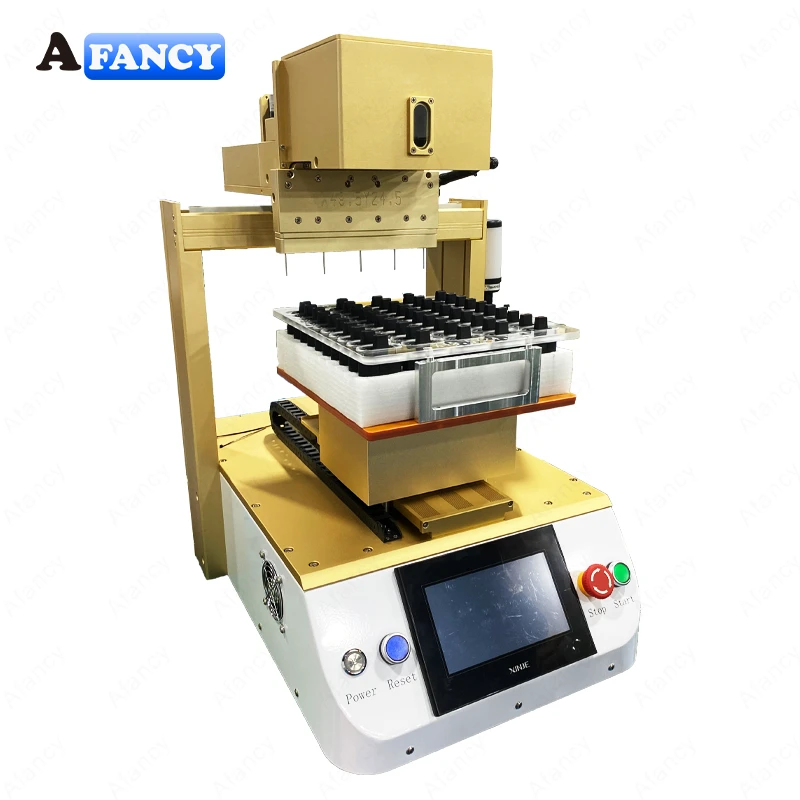

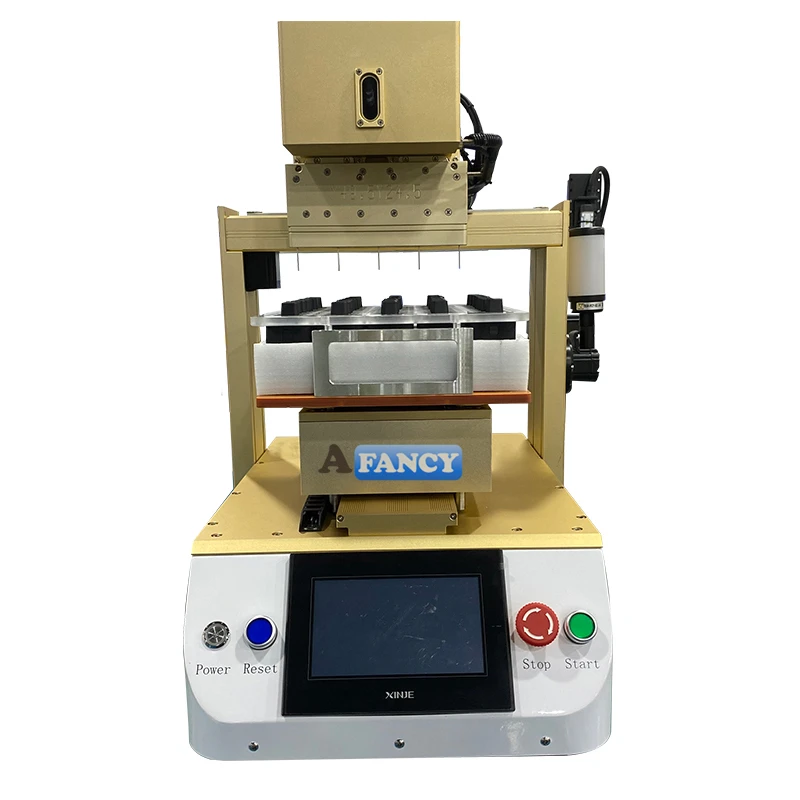

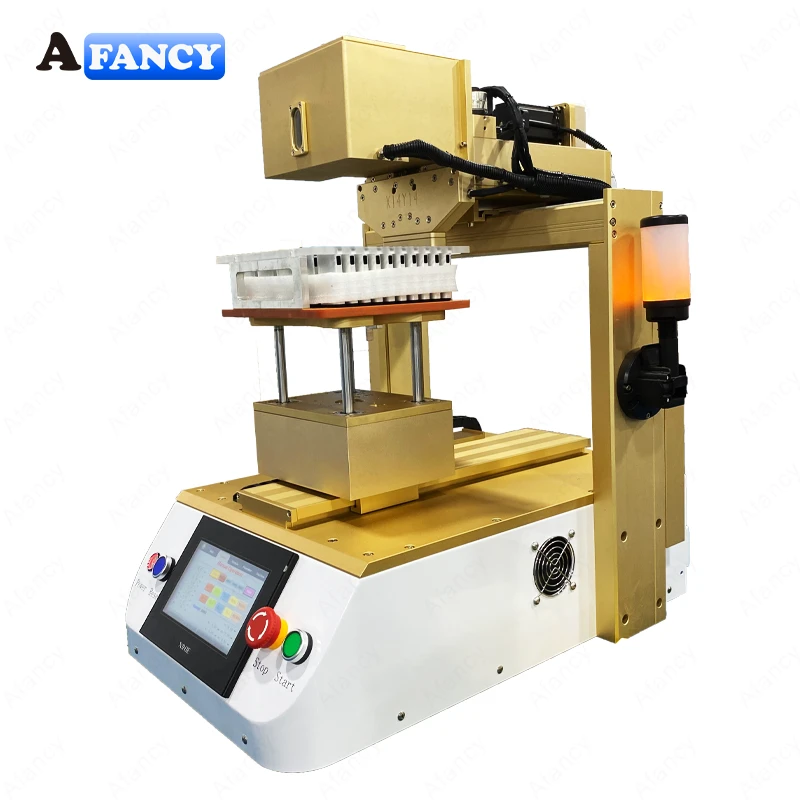

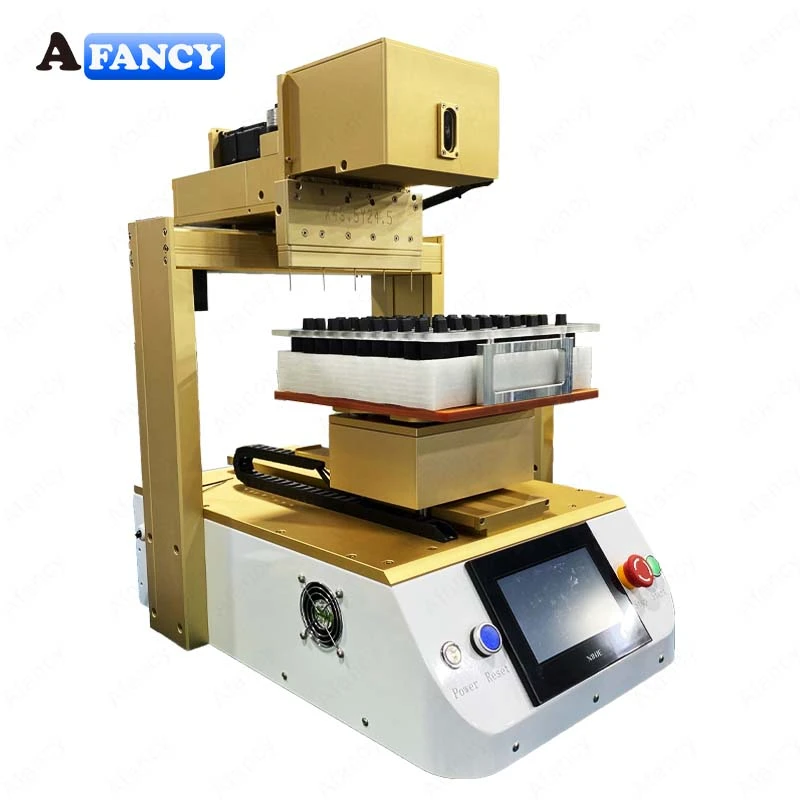

Perfect design structure
- The machine is mainly composed of mechanical devices and electrical control devices.

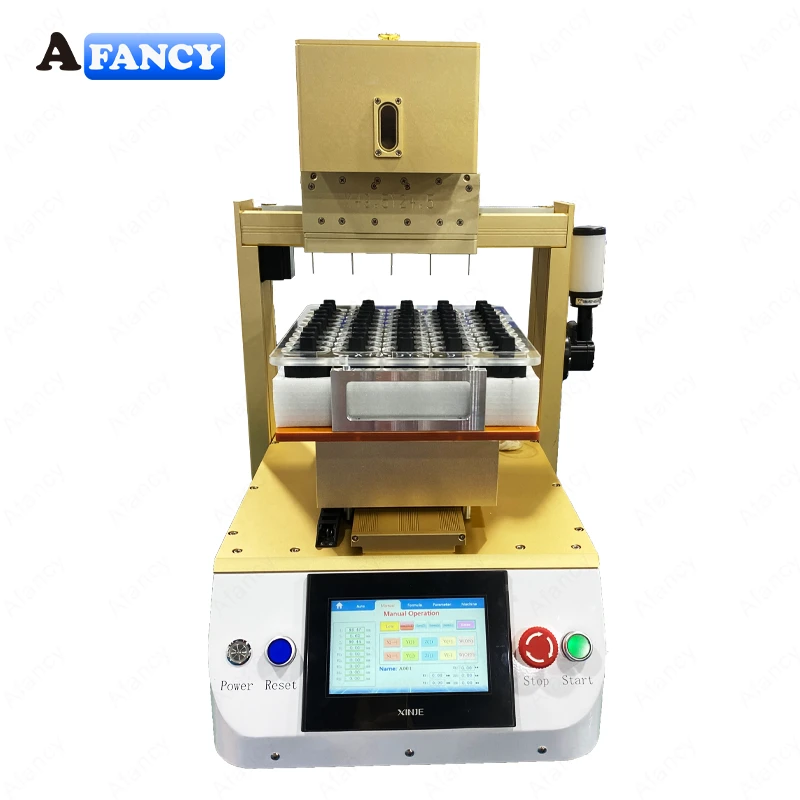

- The electrical part adopts intelligent touch screen display
Perfect design structure
- The machine is mainly composed of mechanical devices and electrical control devices.
- The electrical part adopts intelligent touch screen display
Oil Injection High precision: ≤1%
- Oil filling accuracy (rated stroke) error ≤ 1%,
- Oil filling accuracy (repeatability) error 0.3% ~ 0.7%

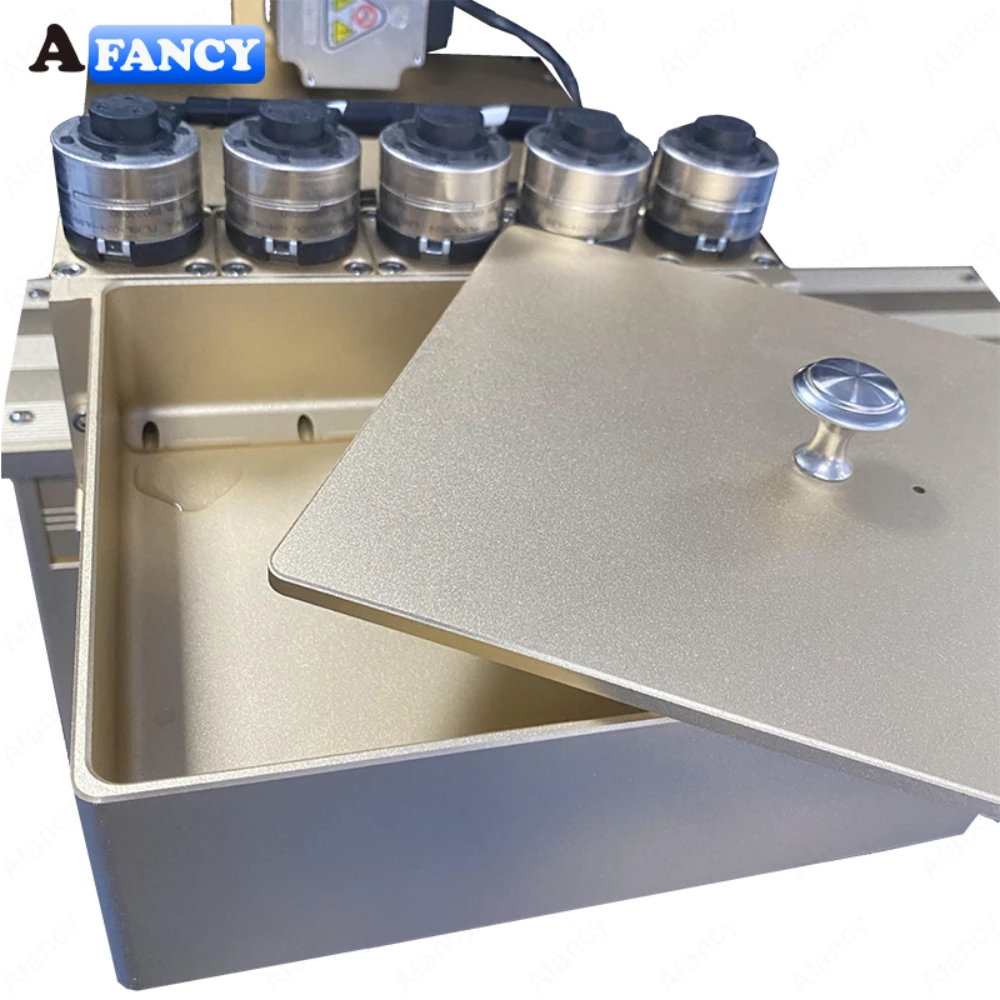

Customized Oil Tank Capacity
- 1000ml and 2000ml capacity are available
- customized capacity
Having CE-Certified: Safe & Healthy
The oil tank is made of environmentally friendly materials, have CE certificate healthy and safe.
The built-in heat insulation layer prevents high temperature and hot hands.
Efficient work

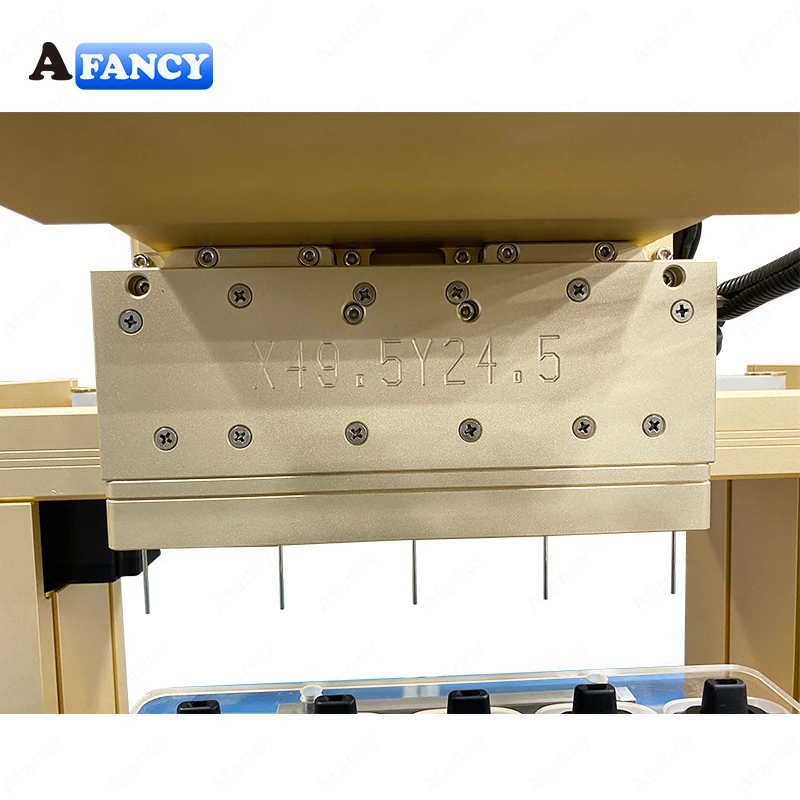

Five needles work at the same time to maximize work efficiency
Actual Cases and Customer Feedback of automatic filling machine
The pictures are from real shots of our customers who have bought the AFM-10 cartridge filling machine.
Production Process
The following is the whole flow chart of the AFM-10 5 heads Automatic Cartridge Filling Machine from production to processing, packaging to transportation.
During the entire production process, we will conduct continuous equipment testing and strive to achieve perfection for every product. Prior to shipping, we will take great care in packaging to ensure that the products you receive arrive undamaged and do not affect your shopping experience due to logistical reasons.
Workshop Display
Related Cartridge Filling / Capping Machine

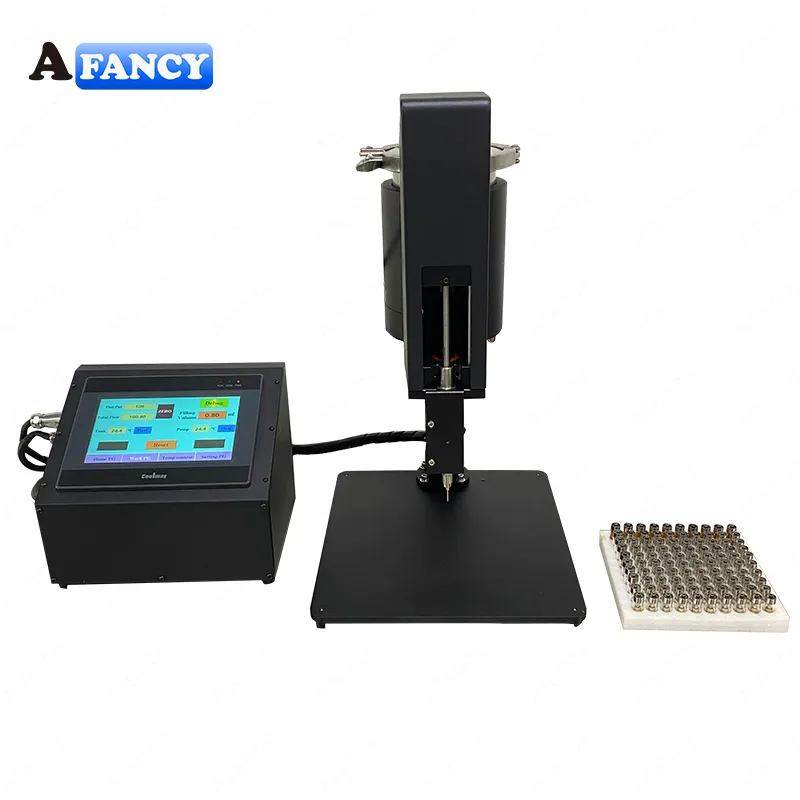

AFM_12 Vape Cartridge Machine
